Automotive
Precision plasticating solutions for high-quality automotive components requiring consistent melt quality and performance.

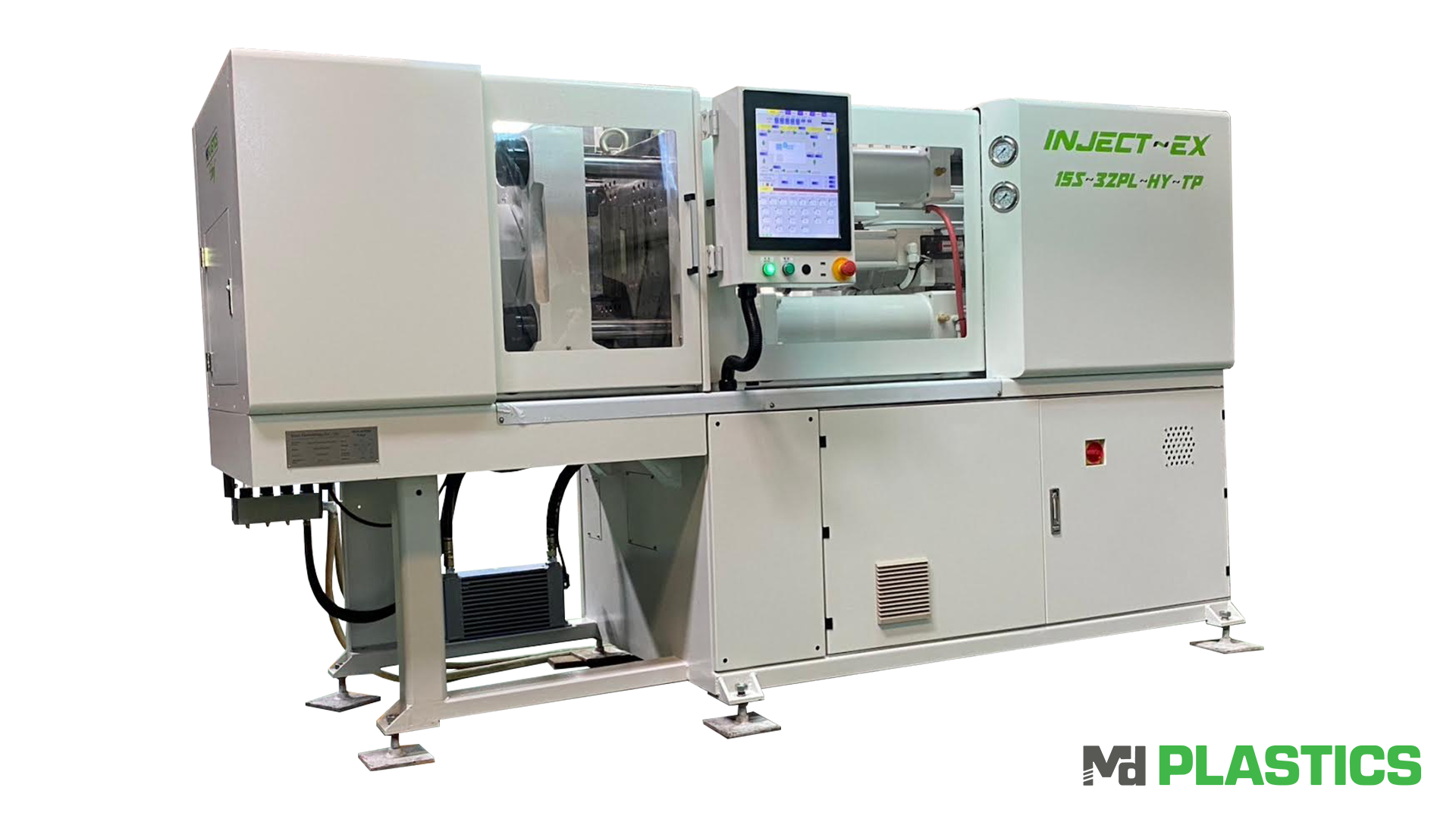

Inject-EX™ Machine
Price Available on Request
Inject-EX™ Machine
Revolutionary Stationary Screw Design
Ultra Precise Shot Control
Consistent Output & Recovery Time
Price Price Available on Request
Global Shipping Available
Custom Solutions Available
Patented Technology, Advanced Process Control
Trusted by Hundreds of Companies Globally
Technical Specifications Overview
Comprehensive technical details of the revolutionary Inject-EX™ Machine design and capabilities.
Parameter
Specification
Design Type
Stationary screw with inline polymer flow
Compatible Materials
Thermoplastics and Thermoset LSR materials
Plunger Technology
Patented plunger head with kinetic energy springs
Shot Control
Ultra precise with mechanical shut-off mechanism
Pressure Vessel
Tight diametrical fit for precise mass displacement
Installation Options
Retrofit existing presses or new IMM integration
Melt Sensing
Temp-Sense™ Melt Sensor for density verification
Energy Efficiency
Reduced energy usage and pressure drop
Applications
Injection molding, LSR processing, recycling
Country of Origin
🇺🇸 United States
DON'T JUST TAKE OUR WORD WATCH TO SEE HOW IT WORKS
Engineered for Excellence
The Inject-EX™ System delivers superior performance through innovative design and advanced plasticating technology.
Precise Shot Control
Ultra precise shot control with patented mechanical shut-off mechanism and plunger technology ensures consistent part quality and minimal waste in every injection cycle.
Consistent Recovery Time
Stationary Posi-Melt™ screw provides consistent output and recovery time, eliminating disruption of solids bed compaction for reliable processing performance.
Energy Efficiency
Inline polymer flow design reduces energy usage and pressure drop while maintaining optimal processing conditions with smaller footprint per output ratio.
Advanced Process Control
Temp-Sense™ Melt Sensor provides real-time melt density verification and good-bad part discrimination using Melt-Profiler™ technology for superior quality control.
Easy Installation
Can be retrofitted onto existing injection molding machines or integrated into new systems through collaboration with EdeX Technology Co., Ltd. for flexible implementation.
Reduced Carbon Footprint
Fewer parts compared to traditional screw/pot machine design results in smaller carbon footprint while maintaining superior performance and reliability.
Frequently Asked Questions
Can the Inject-EX™ System be retrofitted to existing injection molding machines?
Yes, the Inject-EX™ System can be retrofitted onto existing injection molding machines or integrated into new full Inject-EX™ IMM systems through our collaboration with EdeX Technology Co., Ltd. Our team provides direct consultation for custom system design and implementation.
What types of materials are compatible with the Inject-EX™ System?
The Inject-EX™ System is designed to process both thermoplastics and thermoset LSR (Liquid Silicone Rubber) materials. It's particularly effective for thermoplastics processing, LSR processing, recycling applications, and any injection molding operations requiring improved melt quality and precise shot control.
How does the Temp-Sense™ Melt Sensor improve part quality?
The Temp-Sense™ Melt Sensor provides real-time melt density verification and enables good-bad part discrimination using Melt-Profiler™ technology. This allows for immediate quality control feedback and helps prevent defective parts from being produced, reducing waste and improving overall production efficiency.
What support and documentation is available for the Inject-EX™ System?
MD Plastics provides comprehensive support including explainer videos, machine list PDFs, direct consultation with owner Mike Durina for custom system design, and quote requests through our website form. We also offer retrofit services and collaboration with EdeX Technology for complete system solutions.
Stay Updated on Latest Innovations
Get the latest technical documentation and product updates delivered to your inbox.
Industries We Serve
Serving diverse sectors with specialized plasticating solutions for enhanced manufacturing performance.
Advanced Manufacturing Process
Our revolutionary Inject-EX™ System utilizes innovative stationary screw technology to deliver consistent, high-quality plasticating performance.
Material Feed
Stationary Melting
Temperature Sensing
Melt Homogenization
Pressure Control
Precision Injection
Quality Verification
System Reset
Step 1: Material Feed
Material Feed & Preparation
Raw polymer pellets are fed into the system where they encounter the stationary Posi-Melt™ screw design. Unlike traditional systems, our approach ensures consistent material handling from the very beginning.
Consistent pellet distribution
No disruption of solids bed
Step 2: Stationary Melting
Stationary Screw Melting Process
The revolutionary stationary Posi-Melt™ screw provides consistent output and recovery time. Each pellet experiences the same heat and shear history, eliminating the deficiencies of traditional reciprocating systems.
Uniform heat distribution
Consistent shear history
Step 3: Temperature Sensing
Temp-Sense™ Melt Monitoring
The integrated Temp-Sense™ Melt Sensor provides real-time melt density verification and temperature monitoring. This advanced sensor technology ensures optimal processing conditions throughout the cycle.
Real-time density verification
Continuous temperature monitoring
Step 4: Melt Homogenization
Superior Melt Homogenization
The inline polymer flow design along a single axis ensures superior melt homogenization. This eliminates the variability common in traditional systems and delivers consistent material properties.
Inline polymer flow
Enhanced melt quality
Step 5: Pressure Control
Advanced Pressure Management
The pressure vessel with tight diametrical fit enables precise mass displacement and pressure control. This design reduces energy usage and pressure drop while maintaining optimal processing conditions.
Precise mass displacement
Reduced pressure drop
Step 6: Precision Injection
Ultra Precise Shot Control
The patented plunger head with kinetic energy springs provides instantaneous independent mechanical shutoff. This ultra-precise shot control ensures consistent part weight and minimizes material waste.
Mechanical shut-off mechanism
Instantaneous shutoff
Step 7: Quality Verification
Good-Bad Part Recognition
The integrated Melt-Profiler™ technology enables real-time good-bad part discrimination. This advanced quality control system prevents defective parts and ensures consistent production quality.
Melt-Profiler™ technology
Real-time quality control
Step 8: System Reset
Efficient Cycle Reset
The system efficiently resets for the next cycle with minimal energy consumption and optimal recovery time. The stationary design eliminates unnecessary movements and reduces cycle time variability.
Minimal energy consumption
Consistent cycle times
Explore Our Complete Plasticating Solutions
Discover our comprehensive range of innovative plasticating components and systems designed to enhance your injection molding operations.
MDP™ Performance Non-Return Valve
Features patented design with low pressure drop for improved hydraulics, precise shutoff and minimal part weight variance, working with all polymers and machine sizes from 14-260mm.
Mini-Shut™ Automatic Shut-Off Nozzle
Simple, cost-effective solution that eliminates melt-decompression, stringing, and drooling while shutting off instantaneously as soon as melt flow stops with almost no loss of pressure.
Posi-Melt™ Plasticating Screws
Patented feed screw technology with altered flight pitch and root through melting section, increasing plastic exposure to barrel wall by up to 60% for uniform homogenized melt and quicker changeovers.
