Precision plasticating solutions for high-quality automotive components requiring consistent melt quality and performance.

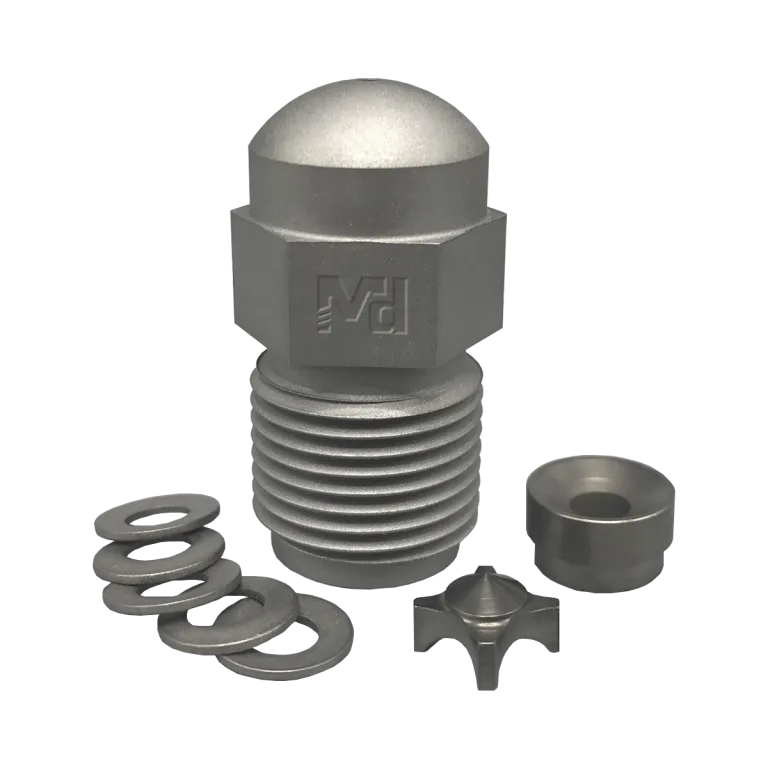

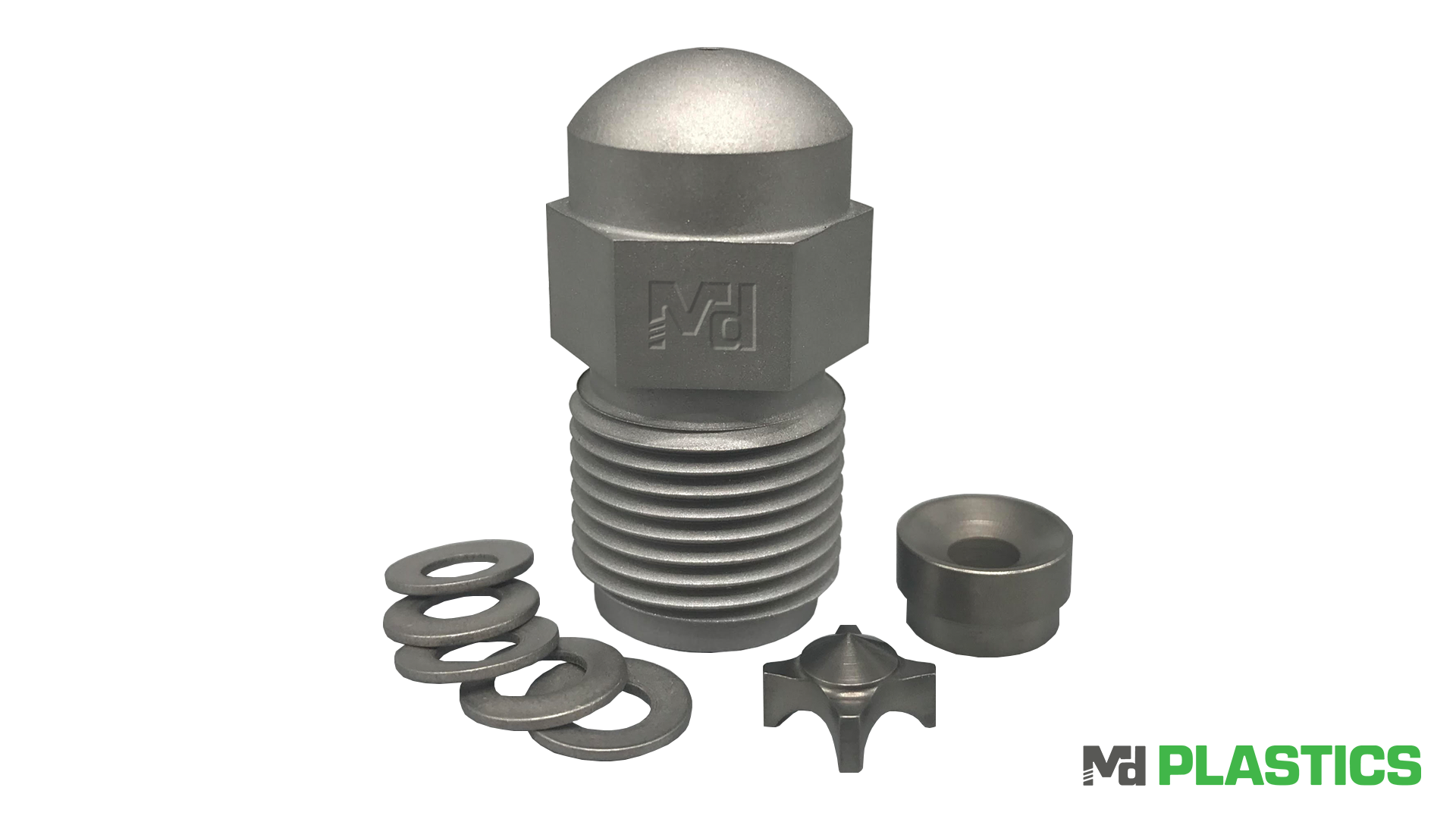

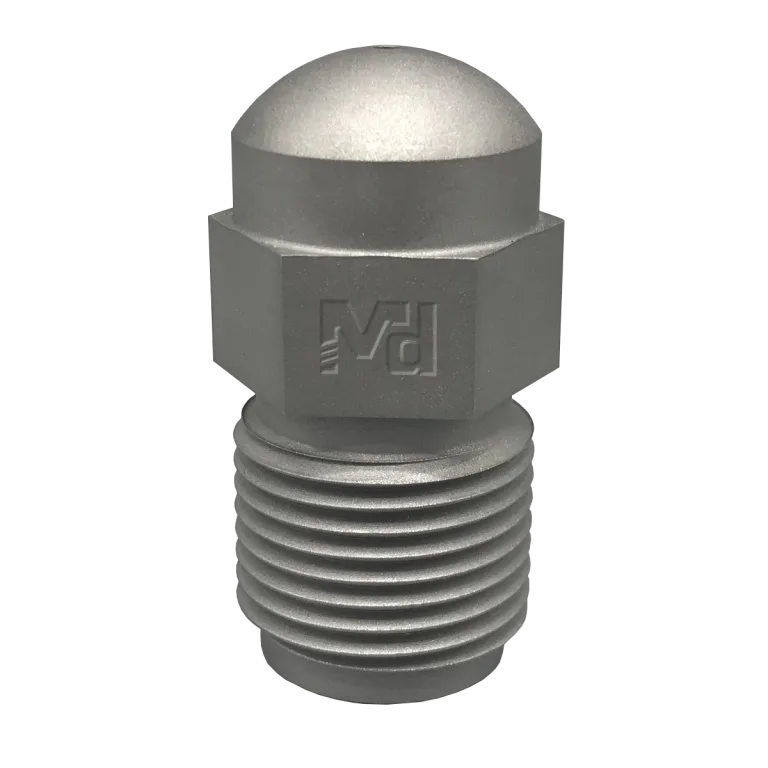

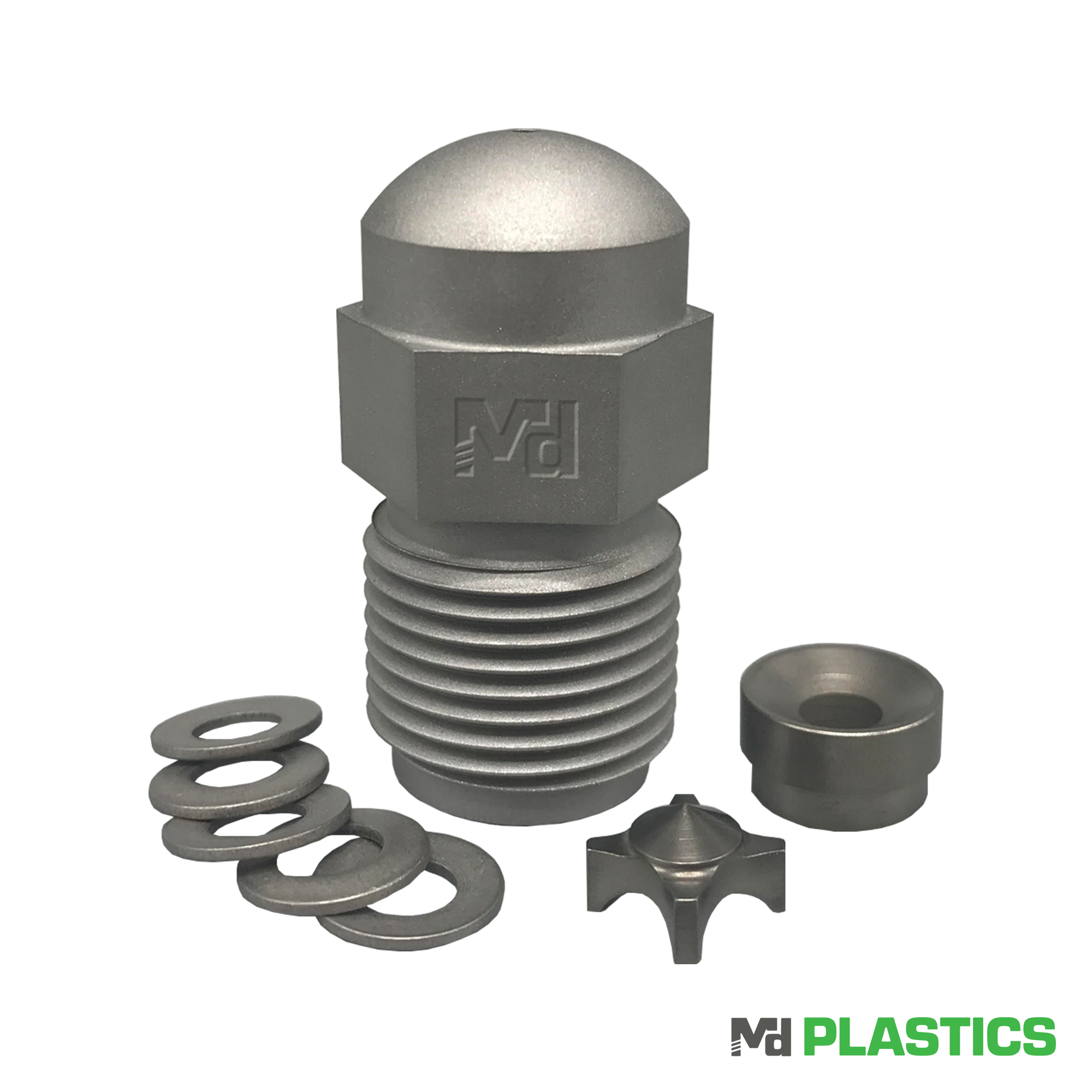

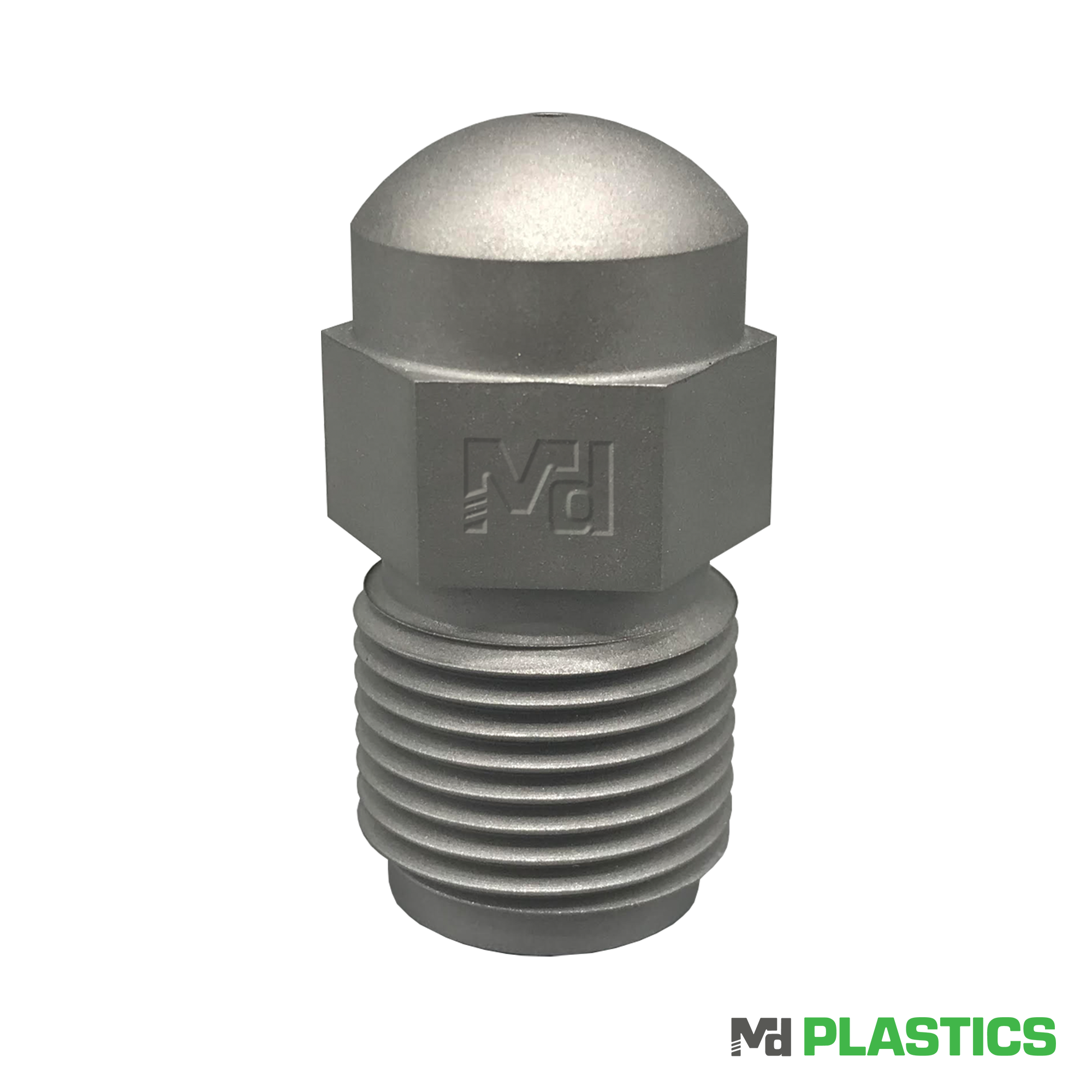

Mini-Shut™ Automatic Shut-Off Nozzle
Eliminates drooling and stringing instantly
Universal compatibility - all machine sizes
Allows simultaneous clamp and screw operation
Price
Price Available on Request
Patented technology with proven reliability
Stock Item - Fast Shipping
Worldwide Availability
Trusted by Hundreds of Companies Globally
.svg.png){kind=logo}
Technical Specifications Overview
Configuration
Specifications
USA Standard
1/2" rear opening, 7/8-14 thread, 1.5-9mm orifice, up to 68 oz
EU (Arburg) Standard
8mm rear opening, M24 x 1.5 thread, 1.5-9mm orifice, up to 68 oz
USA Big Bore
3/4" rear opening, 1-1/4-12 thread, 3-14.3mm orifice, up to 180 oz
Large Machine Bore
1-1/4" rear opening, 2-10 thread, 5-20mm orifice, up to 400 oz
Material Compatibility
All polymers and thermoplastics
Installation
Easy installation on virtually all nozzle bodies
Operation
Instant automatic shutoff when melt flow stops
Pressure Drop
Minimal pressure loss with free flow design
Patent Protection
US Patent #8,734,146 B2
Country of Origin
🇺🇸
United States
DON'T JUST TAKE OUR WORD WATCH TO SEE HOW IT WORKS
Mini-Shut™ Sizing Options
USA Standard
1/2 rear opening, 7/8-14 thd., any radius and orifice from 1.5mm to 9mm. Recommended for machines up to 68 oz.

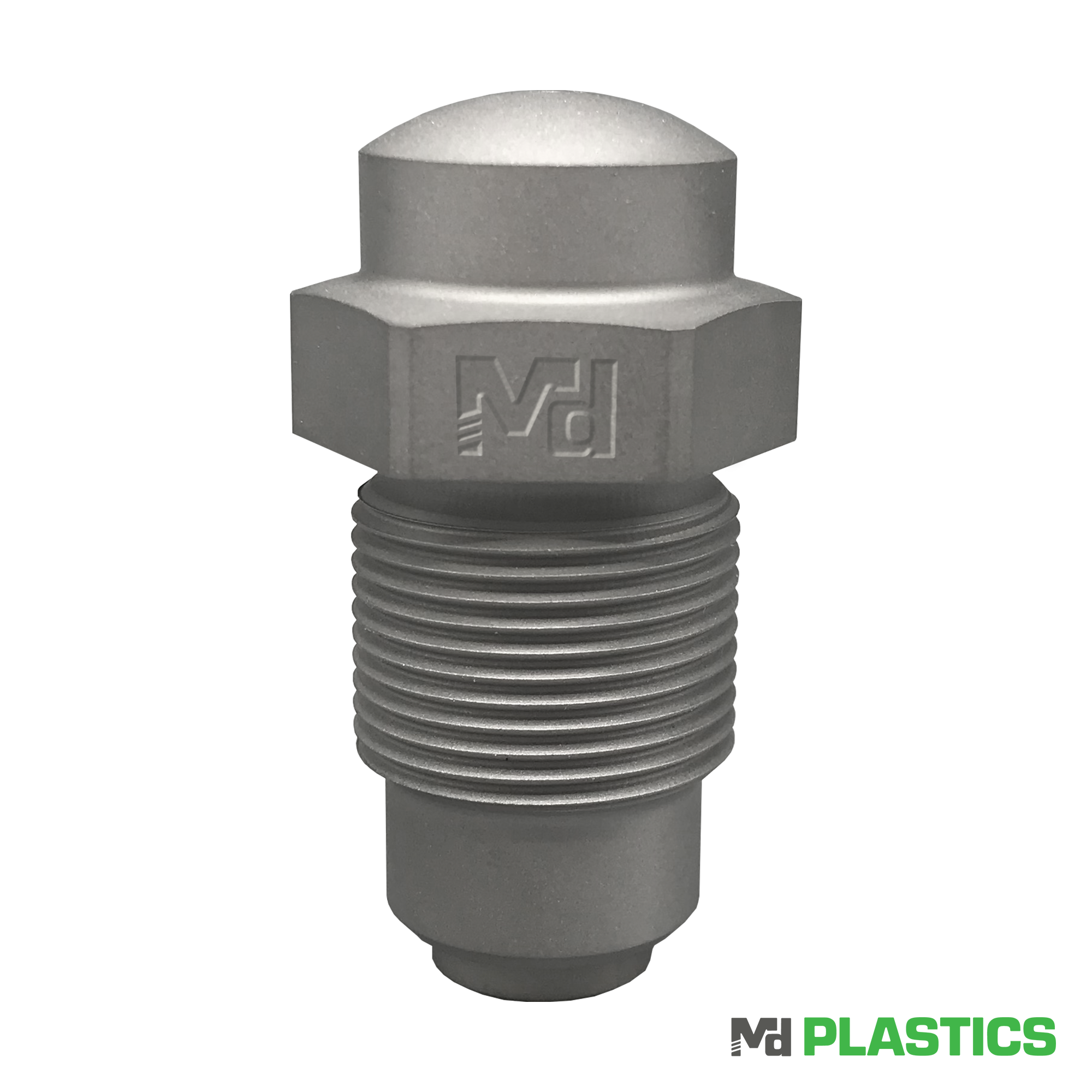

EU (Arburg) Standard
8mm rear opening, M24 x 1.5 thd., any radius and orifice from 1.5mm to 9mm. Recommended for machines up to 68 oz.
USA Big Bore
3/4 rear opening, 1-1/4-12 thd., any radius and orifice from 3mm to 14.3mm. Recommended for machines up to 180 oz.
Large Machine Bore
1-1/4 rear opening, 2”-10 thread., any radius and orifice from 5mm to 20 mm. Recommended for machines up to 400 oz
Engineered for Superior Performance
The Mini-Shut™ nozzle delivers unmatched reliability and efficiency in injection molding operations with patented technology.
Instant Shutoff
Shuts off instantaneously as soon as melt flow stops, preventing drooling and stringing that can damage parts and contaminate work areas. No delay or manual intervention required.
Universal Compatibility
Economical design fits on virtually all nozzle bodies and works with all machine sizes and polymers. Compatible with USA Standard, EU Standard, Big Bore, and Large Machine configurations.
Simultaneous Operation
Allows for clamp and screw to be operated simultaneously, improving cycle times and overall productivity. Eliminates the need for melt decompression in most applications.
Pressure Optimization

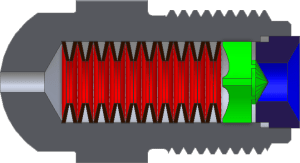

Unique design allows for free flow of material with almost no loss of pressure, maintaining optimal injection conditions while preventing melt from escaping the nozzle end.
Easy Installation
Simple, cost-effective solution that's reliable, easy to use, and easy to install and remove. No complex setup or special tools required for implementation.
Stock Availability
On-the-shelf stock item ensures fast delivery and minimal downtime. No waiting for custom manufacturing or long lead times to get your production running.
Frequently Asked Questions
Is the Mini-Shut™ compatible with my injection molding machine?
Yes, the Mini-Shut™ is designed for universal compatibility. It fits virtually all nozzle bodies and works with all machine sizes from small to 400+ oz, and is compatible with all polymers and thermoplastic materials.
Will the Mini-Shut™ affect injection pressure or flow rates?
No, the unique design allows for free flow of material with almost no loss of pressure. The nozzle maintains optimal injection conditions while providing the shutoff functionality you need.
How difficult is it to install the Mini-Shut™ nozzle?
Installation is simple and straightforward. The Mini-Shut™ is designed to be easy to use, easy to install, and easy to remove. No special tools or complex procedures are required.
What configurations are available for the Mini-Shut™?
The Mini-Shut™ is available in four configurations: USA Standard, EU (Arburg) Standard, USA Big Bore, and Large Machine Bore, covering machine sizes from small up to 400 oz with various thread and orifice options.
